Automatic Spot UV Coating
Machine
Adds a precise, high-glossy finish to specific parts of your print.
Up to 6500-8000 sheets/hour. Coating Accuracy: ±0.15mm
Automatic Spot UV Coating
Machine
Adds a precise, high-glossy finish to specific parts of your print.
OVERVIEW

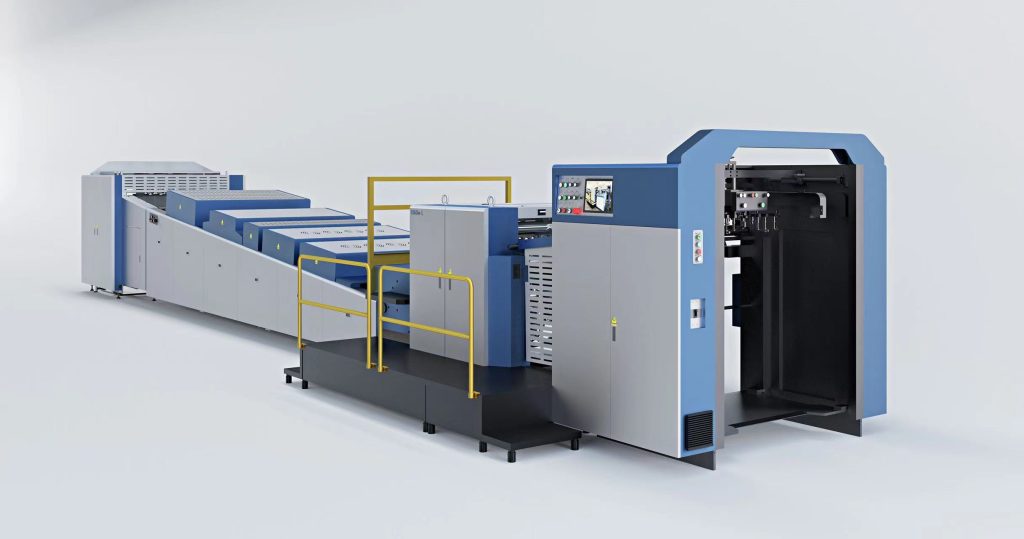

Spot UV Coating Machine
Fengchi high-speed spot UV coating machine adopts upward swing toothed paper feeder to transport paper, and can quickly feed more than 8,000 sheets of paper per hour. It is equipped with an intelligent mesh belt UV curing/infrared drying method, which can effectively improve the flatness of paper varnishing. It has the advantages of high production efficiency, precise positioning, high UV curing efficiency, and low energy consumption.
After the paper passes through the coating oil head, the paper receiving teeth are not irradiated by the UV light source at high temperature, and are directly transported by the Teflon mesh belt, which ensures that the teeth will not be deformed and damaged, and the maintenance is simple and low maintenance cost.
Let us help you find the right UV coating solution. Contact our experts today!
Automatic Spot UV Coating Machine
Product Highlights
High reliability paper feed adopts linear slide rail composition, fast feeding speed, no matter the size of the paper can be closely delivered.
Sensitive electromechanical double – tension side detector, when more than one sheet of paper through, feeding automatically stops.
Maximum load height 1150mm.
Front gauge, pull gauge accurate positioning. Front gauge and pull gauge can be easily and quickly adjusted.
The latest shaft less drive system is easy to use.
Paper delivery structure, maximum mechanical speed of 8000 pieces/hour.
Embossing and coating roller adopts precision grinding treatment, by dynamic balance adjustment, accurate size.
Blanket cylinder has quickly clamp blanket and plate substrate, plate change, plate fast and convenient.
High reliability paper feed adopts linear slide rail composition, fast feeding speed, no matter the size of the paper can be closely delivered.
Sensitive electromechanical double – tension side detector, when more than one sheet of paper through, feeding automatically stops.
Maximum load height 1150mm.
Front gauge, pull gauge accurate positioning. Front gauge and pull gauge can be easily and quickly adjusted.
The latest shaft less drive system is easy to use.
- Thedrying equipment adopts three UV lights , which can quickly cure and dry UV varnish.
Adopt teflon conveying belt to make paper drying, the whole distance bottom air suction, low working noise, high speed, high efficient curing effect and simple maintenance.
Equipped with full /half light conversion, UV leakage protection device to ensure the safety of operating staff.
Built-in automatic temperature control, electronic abnormal jump with cooling exhaust equipment, to prevent the machine temperature from being over high.
Two groups of IR drying, each group of 12 pcs of 1kw light groups staggered arrangement.
The heat of the auxiliary blower is even.
Equipped with the latest electronic frequency conversion power ultraviolet system
With automatic paper loading platform device, the maximum load height of 1200mm, photoelectric induction pneumatic bilateral paper leveler.
Thin paper guide device ensures smooth and neat paper delivering.
The machine is driven by frequency conversion, PLC program controller , working has high stability and low failure rate.
Technical Data
| Model | TY-1060W | TY-1060W-L | TY-1460W | TY-1650W |
|---|---|---|---|---|
| Max.Sheet Size(L * W) | 750mm×1060mm | 1100mm×1460mm | 1300mm×1650mm | |
| Min.Sheet Size (L * W) | 310mm×406mm | 350mm×460mm | 350mm×460mm | |
| Max.Coating Area (L * W) | 730mm×1040mm | 1090mm×1440mm | 1290mm×1640mm | |
| Coating Registration Accuracy | ±0.15mm | |||
| Coating Layer Thickness | 0.15mm ~0.60mm | |||
| Sheet Thickness | 80 ~ 500 gsm | 105 ~ 600 gsm | 120 ~600 gsm | |
| Up to | 6500-8000 sheets/hour | Up to 5-6000 sheets/hour | Up to 4-5000 sheets/hour | |
| Power Required | 40kw (W water-based) | 44kw (E oil-based) | 68kw/Water-based: oil-based total power | 76kw/Water-based: oil-based total power |
| Machine Dimension | 10625mm×2260mm×2100mm | 13225mm×2260mm×2100mm | 11800mm×3400mm×2300 mm | 12840mm×3400mm×2360 mm |
| Machine Weight | 7600kg | 8200kg | 10200kg | 12000kg |
* The speed of the TY series Spot UV coating machines depend on the paper size, specifications, and quality. * This is the current configuration. It may be updated as technology evolves.
Our Advantages
WHY CHOOSE OUR MACHINES
SERVO VACUUM PAPER FEEDING
Unique servo vacuum paper feeding mechanism, easier feeding than other laminator machines.
SERVO TRACKING SYSTEM
Automatic servo tracking system, ensure lamination accuracy.
DIGITAL GLUE ADJUSTMENT
Automatic digital glue adjustment, bottom paper height adjustment system.
AUTOMATIC REFUELING SYSTEM
Double bearing automatic refueling system, maintenance free.
Have a project, need a helping hand?
What do we do
Why choose us to cooperate?
2. Strong R&D team by 25 senior engineers over 30 years experience in printing industry. With 30 patents to ensure product more stable, more efficient and durable.
3. After-sale service and technical assistance: company provides after sales service and technical assistance as per customers’ requirement and needs with response within 24 hours.
4.Cost saving: Full servo digital operating system greatly reduce operator level(normally two primary operator) with manpower saving, 150mm roller with double bearing and auto refueling system make equipment durable and free maintenance. China highest laminating speed at 16,000pcs/hour.
Are you a manufacturer?
Yes, we are paper Laminator master from China over 13 years, specialize in paper flute laminator and paper pile turning machines.
Do you have stock products to sell?
We produce machines in bacth normally. So most models we have some in stock, please check with us before ordering.
How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
Do you test all your goods before delivery?
How about installation and training?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
What is your delivery time?
Our delivery time is 10-30 working days after receiving full payment or deposit. The specific delivery time depends on the product and the order quantity.
What are your packaging conditions?
Usually, we pack the machine in a container with a plastic bag with desiccants, then with strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into case.
Will you supply for OEM orders?
