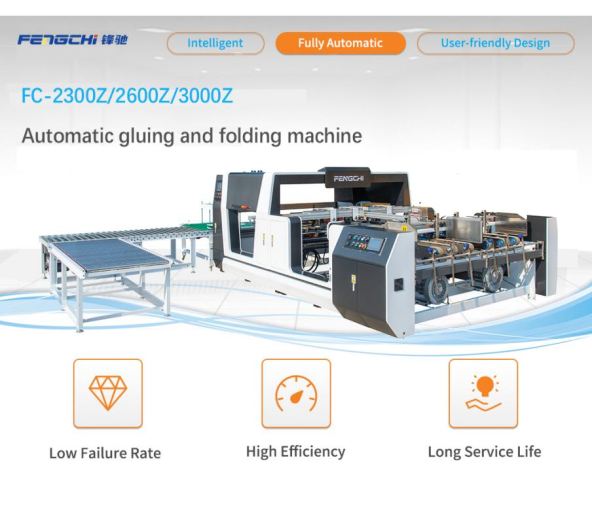

Automatic Folder
Gluer Machine

Achieve high-speed, precision folding and gluing for your corrugated box production.

Automatic Folder
Gluer Machine

Achieve high-speed, precision folding and gluing for your corrugated box production.

Why Choose FC Series Folder Gluer Machines?

Our automatic folder gluer is engineered for maximum efficiency, precision, and reliability in your corrugated packaging production line.

40% Faster Setup

Reduce changeover times with intuitive controls and preset configurations for different box styles.

Precision Engineering

Advanced servo technology ensures accurate folding and gluing with minimal material waste.

Continuous Operation

Designed for 24/7 operation with minimal maintenance requirements and easy access to components.

High Speed

Maximum AB sheet gluing speed is over 2,500 sheets/hour.

One Man Operation

Professional delivery line mechanism, one-man operation to save the labor cost.

Strong Cohesiveness

Hot-glue for positioning works with cold glue cementing. Internal pressure of the vacuum drum ensures automatic cold gluing.

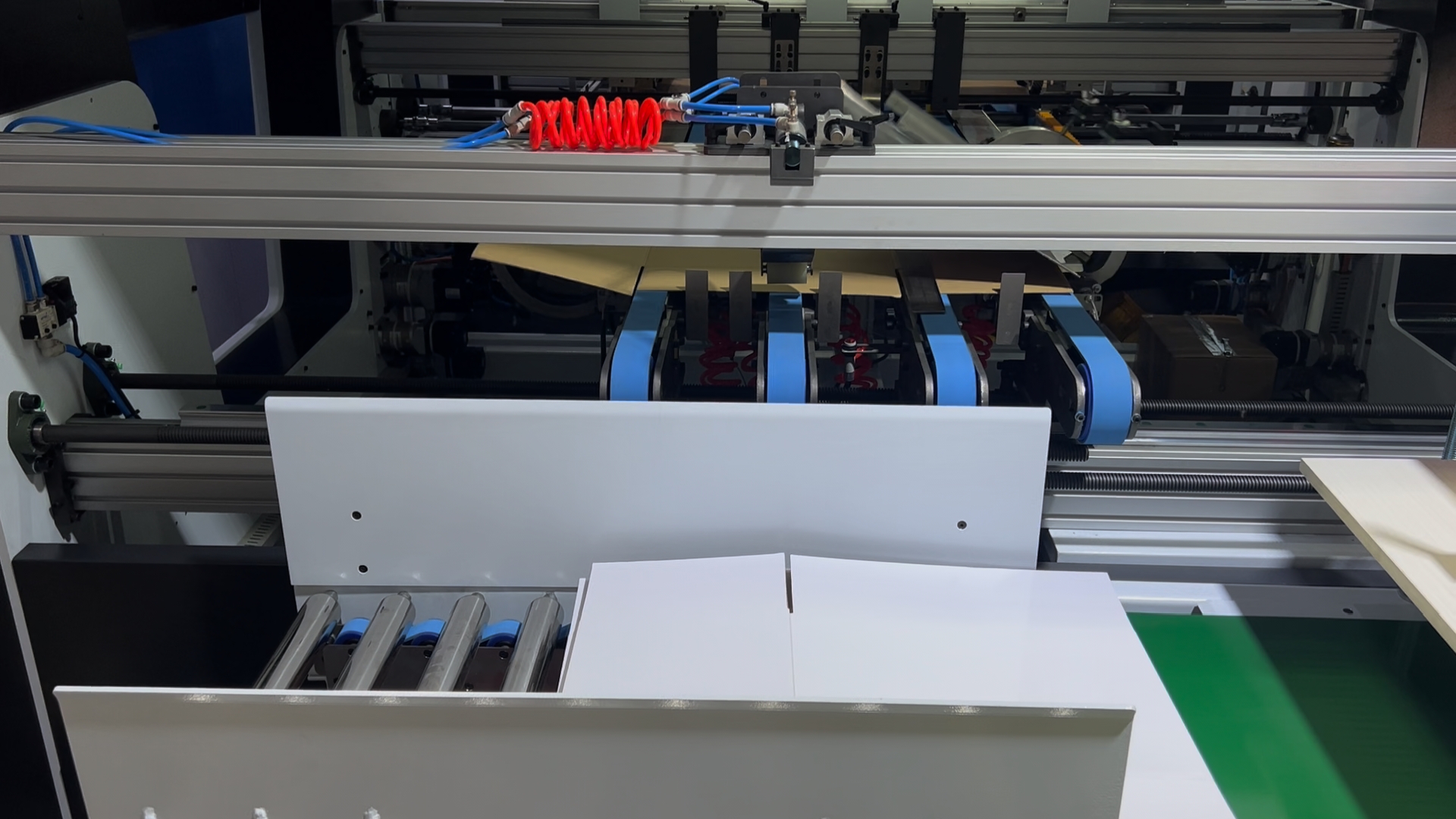

See It In Action

Watch how our automatic folder gluer transforms corrugated board into perfectly folded and glued corrugated boxes at high speed.

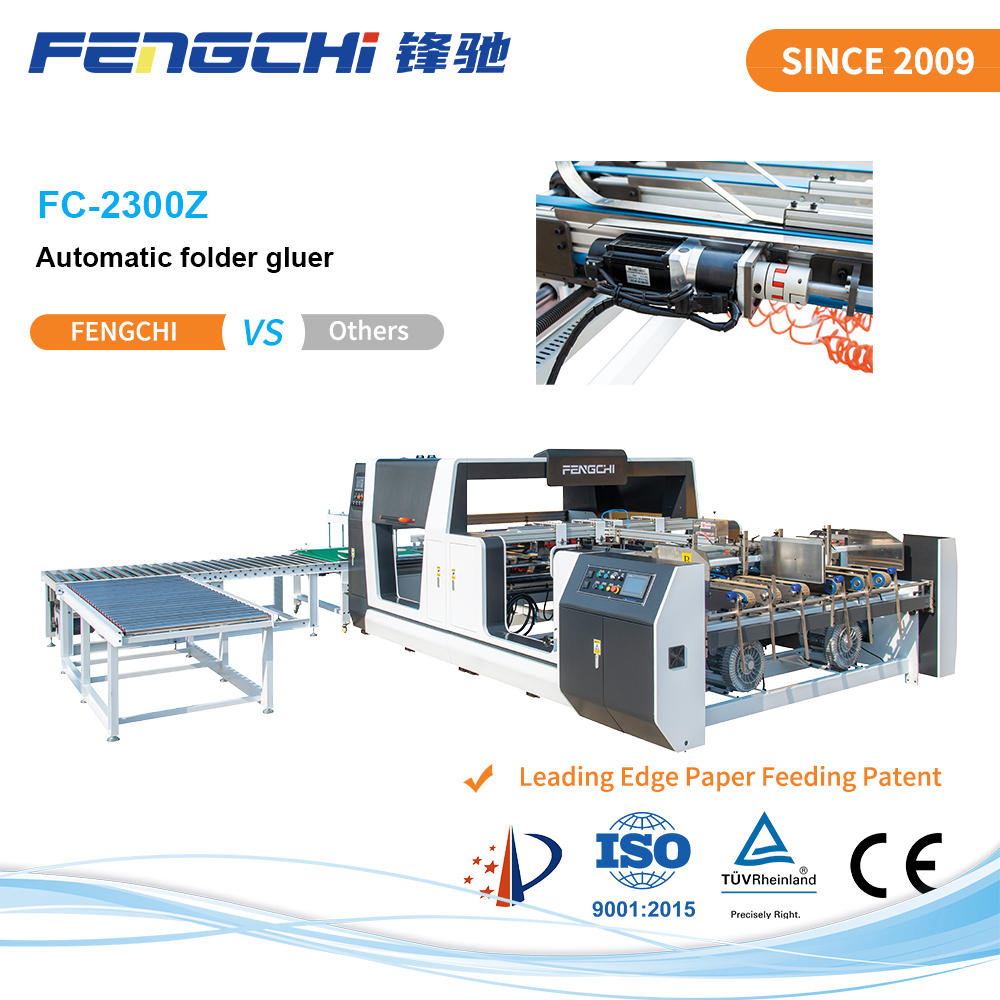

FC-2300Z ​Automatic Folder Gluer Machine

FC-2300Z ​Automatic Folder Gluer Machine

Usage: Sticky carton box
Material: Steel
Feeding Type: Automatic
Feeding Way: Automatic Feeding
Applicable Industries: Package
Glue: Water-base cold glue
Automatic Grade: Semi-Automatic
Max Paper Thickness: 1 – 12 mm
Processing Type: Paper making machine
Driven Type: Gluing Machine, Electric
Electrics Brand: Schneider / MCGS / CHINT / DELTA
Raw Material: Paper
Power Of Motor: Adjustable-speed Motor
Glue Material: Cold glue
Dimensions: 2.1 * 0.5 * 1 mm

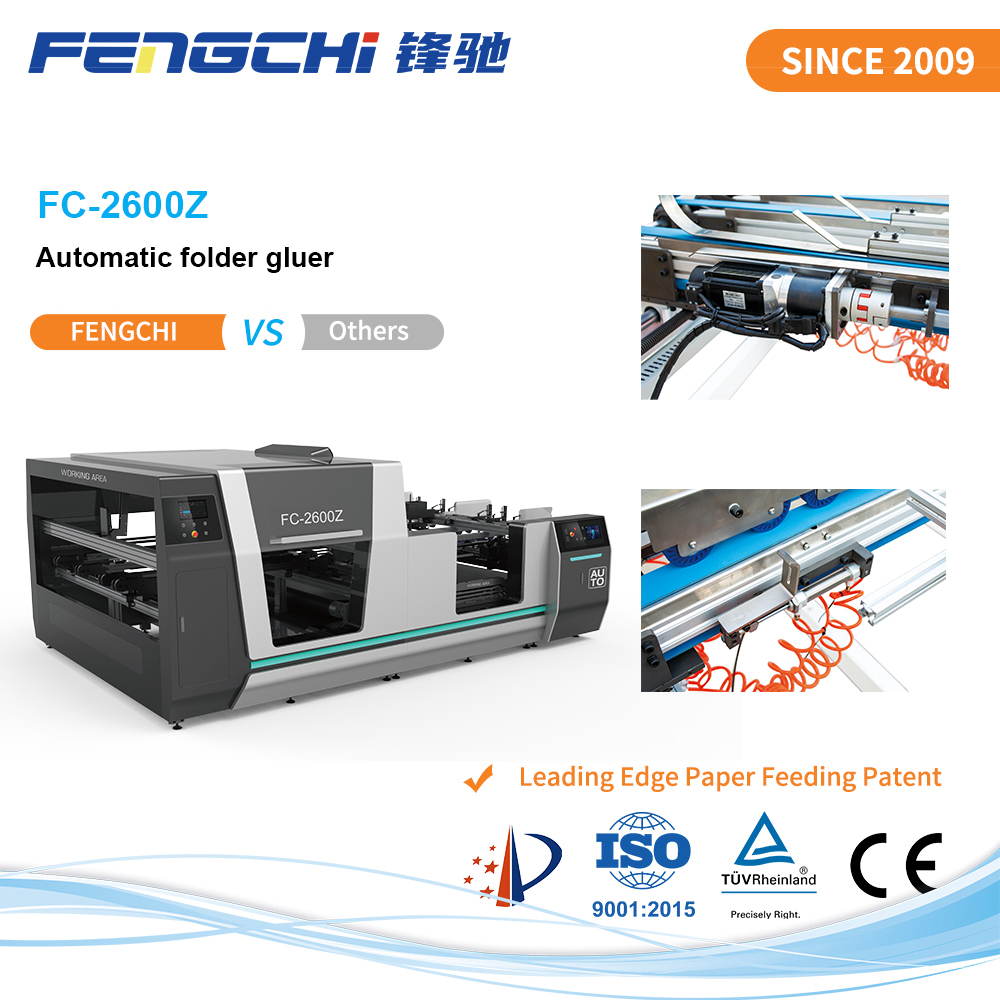

FC-2600Z ​Automatic Folder Gluer Machine

FC-2600Z Automatic Folder Gluer Machine

Usage: Sticky carton box
Material: Steel
Feeding Type: Automatic
Feeding Way: Automatic Feeding
Applicable Industries: Package
Glue: Water-base cold glue
Automatic Grade: Semi-Automatic
Max Paper Thickness: 1 – 12 mm
Processing Type: Paper making machine
Driven Type: Gluing Machine, Electric
Electrics Brand: Schneider / MCGS / CHINT / DELTA
Raw Material: Paper
Power Of Motor: Adjustable-speed Motor
Glue Material: Cold glue
Dimensions: 2.1 * 0.5 * 1 mm

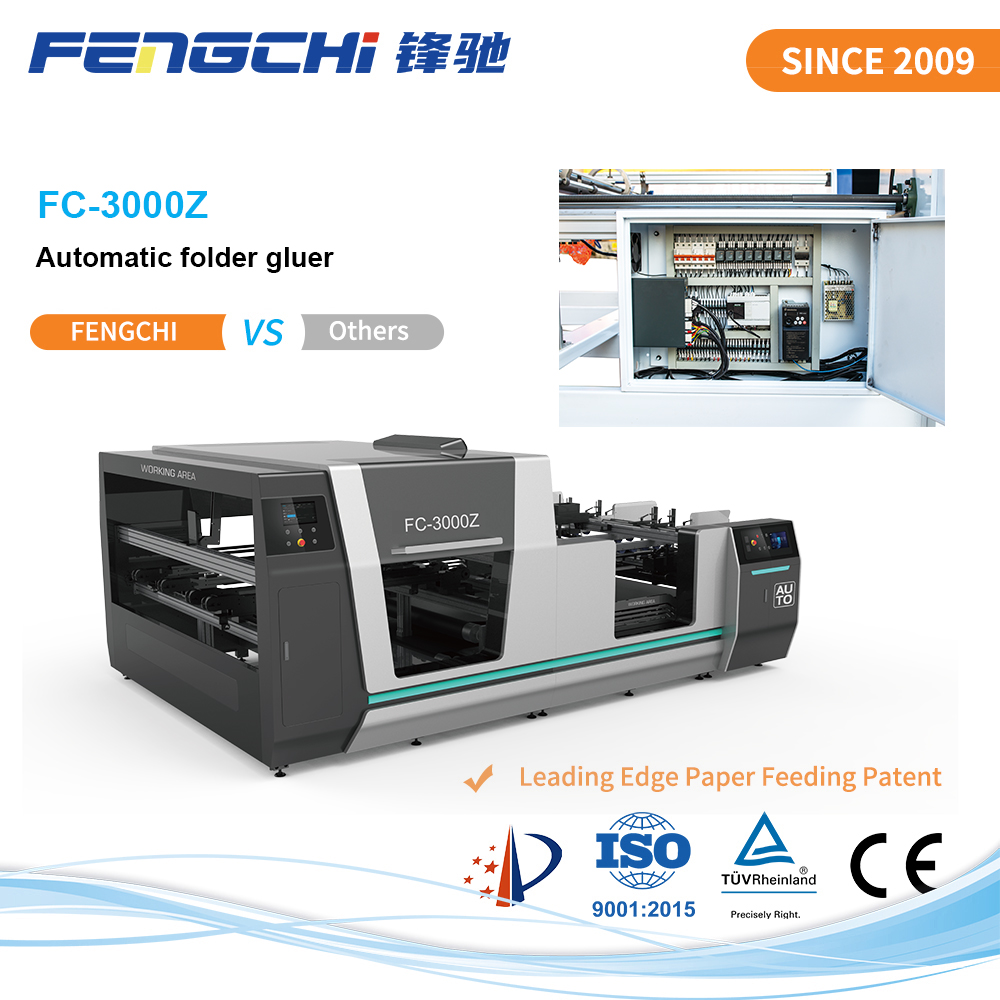

FC-3000Z Automatic Folder Gluer Machine

FC-3000Z Automatic Folder Gluer Machine

Usage: Sticky carton box
Material: Steel
Feeding Type: Automatic
Feeding Way: Automatic Feeding
Applicable Industries: Package
Glue: Water-base cold glue
Automatic Grade: Semi-Automatic
Max Paper Thickness: 1 – 12 mm
Processing Type: Paper making machine
Driven Type: Gluing Machine, Electric
Electrics Brand: Schneider / MCGS / CHINT / DELTA
Raw Material: Paper
Power Of Motor: Adjustable-speed Motor
Glue Material: Cold glue
Dimensions: 2.1 * 0.5 * 1 mm

Automatic Folder Gluer Machine

Independent dual feeding mechanism
Dual suction and feeding mechanism are independently controlled to ensure paper feeding is stable and reliable, and paper feeding with high accuracy and easy to adjust.
Sheet conveying individual control
Individual drive structure for AB sheet feeding and clutch system to avoid the scratches of board with belt in conveying.
Servo control alignment system
motion control servo positioning system to ensure highly accurate on the alignment of carton gluing, and faster for digital adjustment.
Strong cohesiveness by cold and hot double coating structure
The hot glue uses an aluminum glue box to heat quickly for instant sticking location. Cold glue uses stainless steel glue box to resist corrosion. Cold glue storage in a bucket with pressure for automatic gluing.
Servo motor controlled folding
Use servo motor to fold the carton, with adjustable pressure and stable folding.

Technical Data

Model FC-2300Z FC-2600Z FC-3000Z
Maximum sheet size (single) 1150mm * 1150mm 1300mm * 1150mm 1500mm * 1200mm
Minimum sheet size (single) 550mm * 350mm 550mm * 350mm 550mm * 350mm
Feeding pile height 400mm 400mm 400mm
Registration Accuracy ±1.0mm ±1.0mm ±1.0mm
Sheet thickness E flute to 10mm E flute to 10mm E flute to 10mm
Power 16KW 16KW 16KW
Gross weight 4.6T 5.0T 5.4T
Machine size (Receiving parts exclusive) 4950mm * 3300mm * 1800mm 4950mm * 3800mm * 1800mm 4950mm * 4200mm* 1800mm

What Our Customers Say

Hear from packaging professionals who have transformed their production with our equipment.

“Since installing the FC-2300Z ​Automatic Folder Gluer Machine , our corrugated box production efficiency has increased by 35%. The quick changeover between different box styles has been a game-changer for our operation.”

– Michael Rodriguez, Production Manager

Fengchi after-sales service team

First Class Service & Support

Fengchi Printing Machinery knows that successful installation, training, and support are critical to your operation and achieving the profitability gains you target. This drives our commitment to your success.

Our goal is to provide you with the tools and technical knowledge that your in-house maintenance needs, to be able to fix their own machines. Our technical support team and parts department work with customers to resolve issues over the phone, but when special care is needed, our team is prepared to make emergency field service visits, to get your plant up and running quickly. Parts, service, and support are handled directly through the Fengchi technical support group.

Ready to Transform Your Production Line?

Contact our specialists today to discuss how the FC Series Folder Gluers can optimize your packaging production and boost your bottom line.
