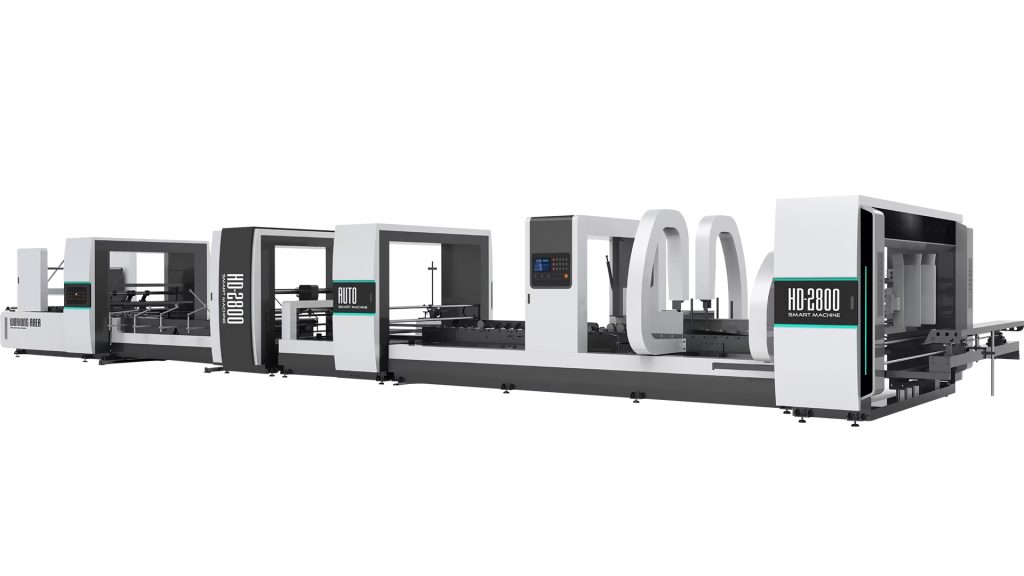

HD Series Automatic
Folder Gluer Stitcher
High-speed folder gluer stitcher for corrugated boxes.
Up to 1600 stitches/min · Max sheet 3600 × 1600 mm · 3–5 min job changeover.
HD Series Folder
Gluer Stitcher
1600 Stitches/Min. Max Sheet 3600 mm × 1600mm
Machine Overview
High Speed Folder Gluer Stitcher
Fengchi is a leading global manufacturer of automatic folder gluer and stitchers.
Since 2009, Fengchi has led the industry in folding gluing and stitching technology, delivering reliable, high‑quality equipment built for maximum uptime. They are ideal for packaging manufacturers producing high volumes of corrugated boxes.
We guarantee our total support, before, during and after sale and installation.
Key Benefits:
- Up to 1600 Stitches/Min
- Max Sheet 3600mm × 1600mm
- Job Changeover 3–5 Minute
- Operator Friendly
Contact our experts to discuss your project or get a quote.
See the HD Series — High-Speed Folder Gluer & Stitcher in Action
Watch how our high-speed folder gluer and stitcher transforms corrugated box production with precision and efficiency.
Main Features
Engineered for precision and speed, the HD Series delivers unparalleled performance in folding and stitching operations.
Full-process Intelligent Control
The key feature of the machine is full computer control, easy operating, stable quality, quick-speed to achieve economic benefits, labor cost saving.
Quick Order Changeover
Job-change can be done in 3-5 mins to do massive production. (Order memorizing function included)
Full Corrugation Compatibility
Suitable for A/B/C/AB flute, 3ply, 5ply, 7ply corrugated paper.
Modular Multi-functional Platform
This machine is an all-in-one machine, separately it can do folding gluing, stitching, or folding gluing and stitching. Single stitching and double stitching can be easily switched.
Smart Stitching Monitoring
The automatic stitch feeding can realize stitch detection and stitch breaking.
Dual-stage Positioning System
Use the paper correction device to make secondary compensation and correct the positioning mistake, eliminate the unaligned part to perfectly stitch the box.
Technical Data
| Model | HD-2800 | HD-2800 Ultra | HD-3600 |
|---|---|---|---|
| Max.Sheet Size(W * L) | 2800mm × 1200mm | 2800mm × 1200mm | 3600mm × 1600mm |
| Min.Sheet Size (W * L) | 830mm × 300mm | 760mm × 300mm | 1160mm × 400mm |
| Max stitching speed | 1600 stitches/min | ||
| Stiching gap | 40-500mm | ||
| Stitching quantity | 1-99 | ||
| Machine net weight | 9.7T | 11T | 12T |
| Machine size | L17000mm × W4100mm × H2200mm | L17000mm × W4100mm × H2300mm | L19000mm × W4400mm × H2800mm |
| Stitch angle | 45° | ||
| Air source | 0.6-0.8Mpa | ||
| Power source | 380VAC/3P, 50Hz | ||
| Power | ≤ 23 KW | ≤ 28 KW | ≤ 31 KW |
| Applicable paper | A, B, C, AB flute, 3ply, 5ply, 7ply corrugated paper | ||
| Automatic feeder pressure adjustment | No | Yes | Yes |
| Automatic stitching head pressure adjustment | No | Yes | Yes |
| Customized small side folding | No | Yes | Yes |
| Folding part full servo contro | No | Yes | Yes |
* This is the current configuration. It may be updated as technology evolves.
Product Gallery

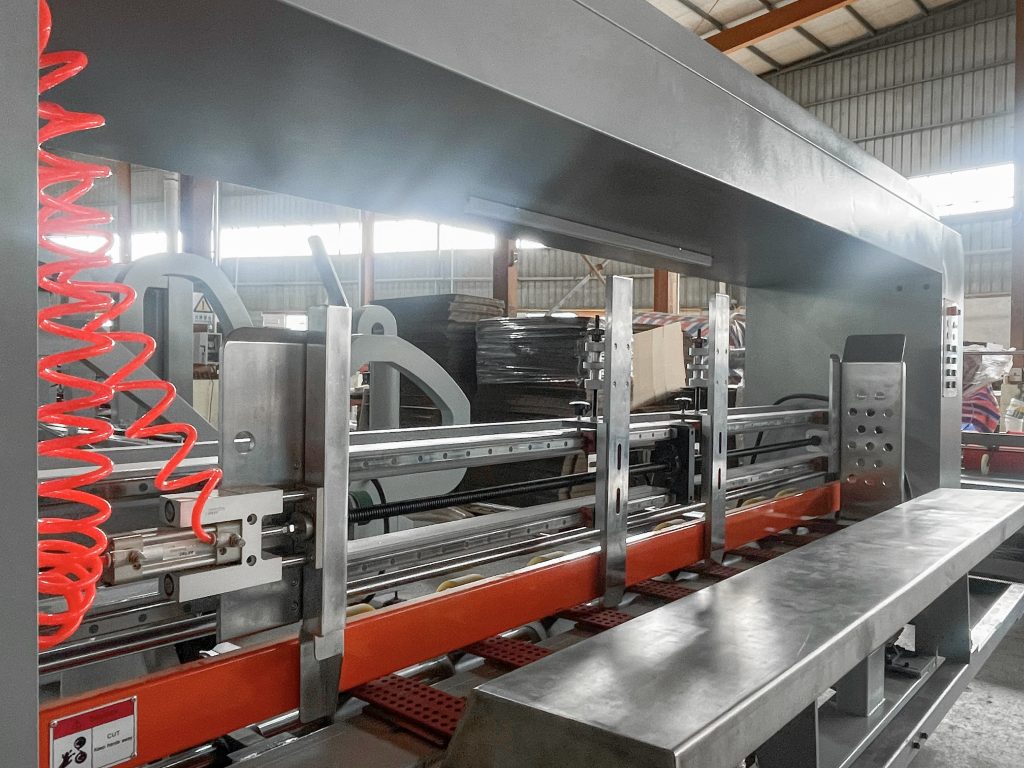

Feeding Part
- With the retention frame pneumatic flap, more stable, higher accuracy.
- Siegling high wear-resistance suction belt, can control the air volume, Ensure complete paper adsorption, ensure stable paper transmission, accurate positioning.
- Split air suction unit, effectively reduce the after-sales maintenance cost and time.

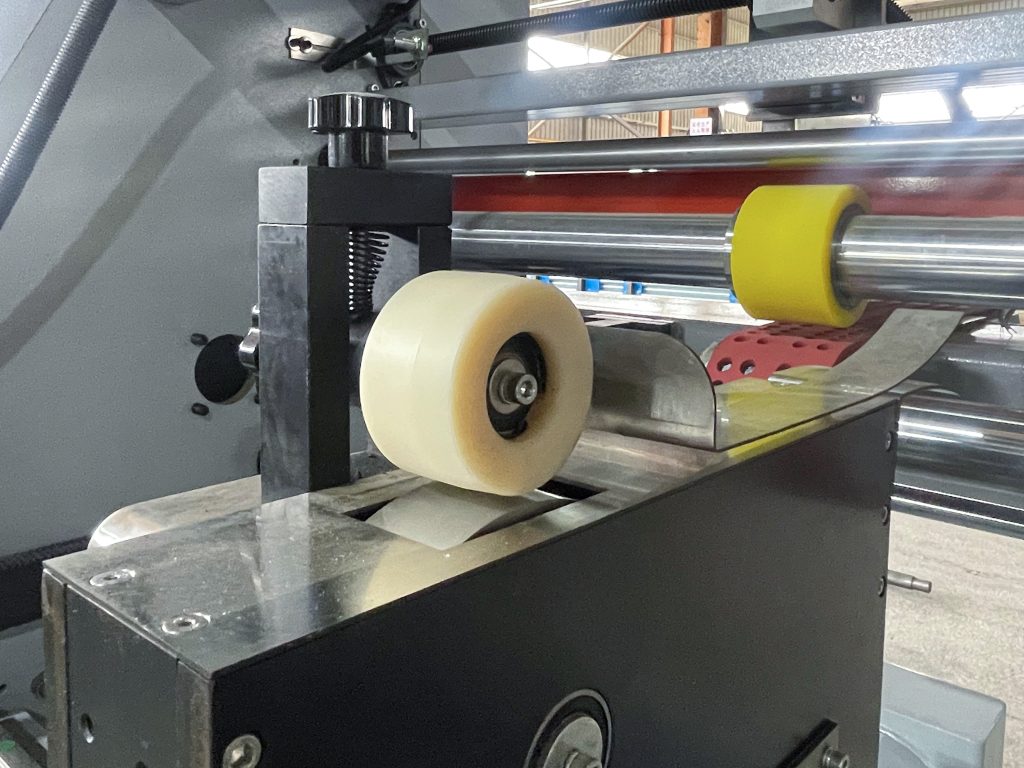

Pressing Part
- The independent edge pressing structure effectively solves the problem of thick cardboard blasting in the process of stitching.
- The split transmission shaft can be adjusted separately and tightened to ensure that the belt pressure is consistent, the paper is stable and effectively avoid the shaft phenomenon.

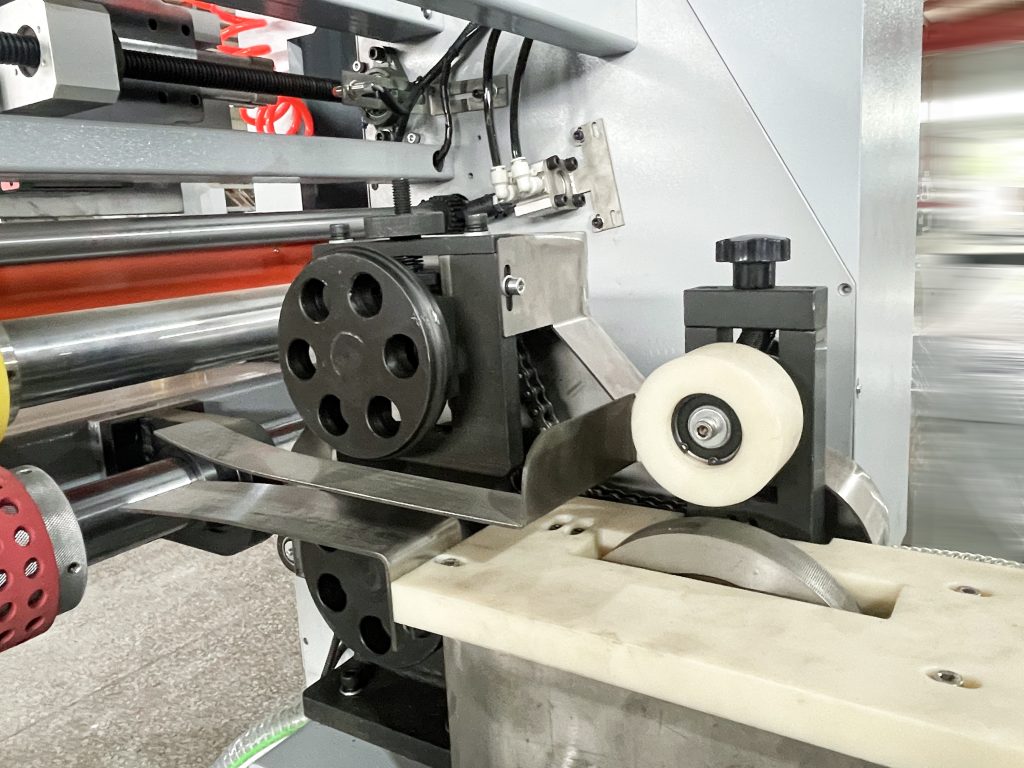

Creasing Part
- The patented design with active line pressing device to ensure the stability, good forming effect and smooth packing.
Folding Part
- Adopts synchronous belt drive to avoid the phenomenon of cold start skid and ensure the smooth transmission of paper.
- Reinforced four-axis transmission to ensure that the machine operation, transportation process is stable, no deformation.

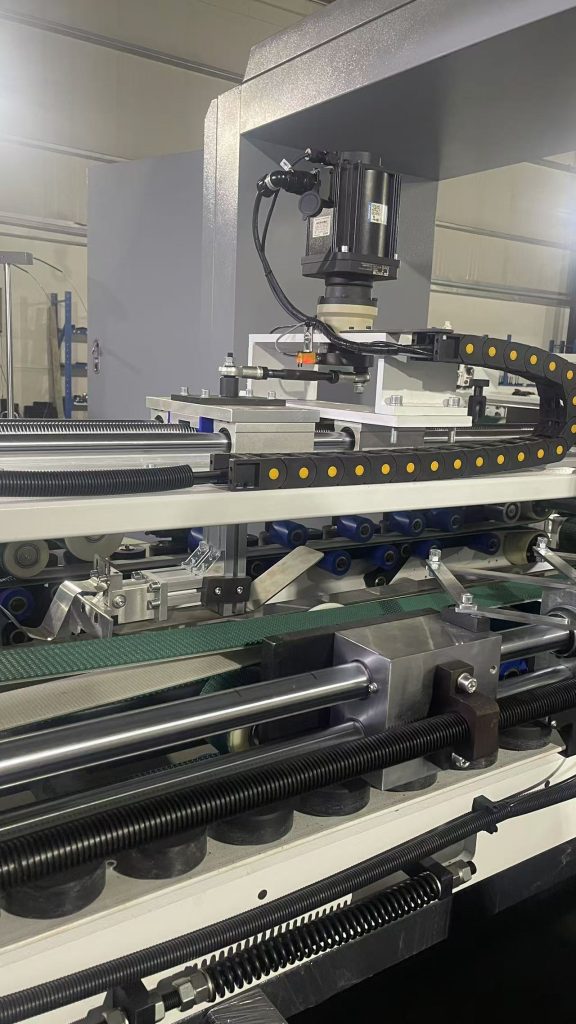

Flap Part
- Reciprocating straight line beat correction, high accuracy, stable operation.
- The forward-leaning arched beam is conducive for carton connection and transmission.
- With the sunken belt, greatly strengthen the molding accuracy and smoothness of the carton.

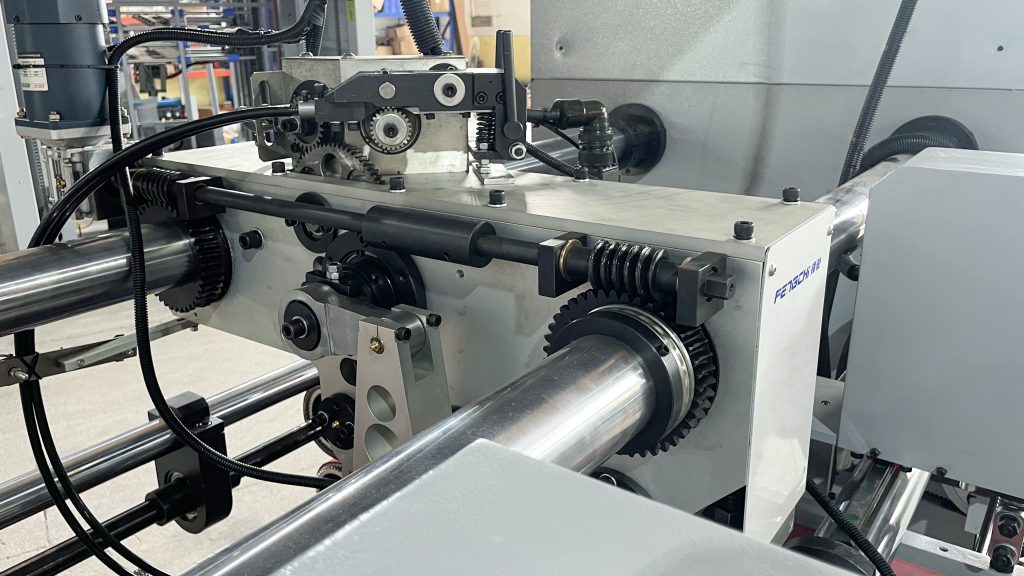

Stitching Part
- The swing stitching head ensures low power consumption, faster speed, and greater stability, enhancing nail box quality.
- Integrated design guarantees precise distance control, while simplifying installation, maintenance, and operation.
- Customized alloy material ensures the blade withstands 6 million cycles wear-free.
- Seven-series aluminum alloy exhibits superior heat dissipation and mechanical properties compared to standard materials.
