Automatic Folder
Gluer Machine
High-speed automatic folder gluer with precision engineering for optimal packaging production
Automatic Folder
Gluer Machine
Automatic folder gluer for optimal packaging production
Optimize Your Packaging with Fengchi Folder Gluer Machines
Boost productivity and cut setup times with Fengchi’s automatic folder gluer machines—perfect for packaging and print manufacturers.
Why Choose Fengchi?
Fast, Reliable Performance: Achieve quicker setup and high-speed production for greater output.
Proven Expertise: Over 15 years designing top-quality folding and gluing solutions.
Precision Adhesive System: Consistent glue application reduces waste and delivers strong bonds.
Versatile Applications: Handles corrugated boxes, folding cartons, and more with ease.
Ready to Increase Capacity?
Upgrade your line with a Fengchi folder gluer machine and see immediate gains in efficiency and quality.
Contact our team today for a custom quote!
Automatic Folder Gluer Video Demo | Corrugated Box Equipment
Watch our automatic folding and gluing machines in action. Designed for the corrugated and cardboard box industry, our high-quality machines automate large-volume box folding and gluing.
Get more information or request a quote today.
Automatic Folder Gluer Machine Gallery

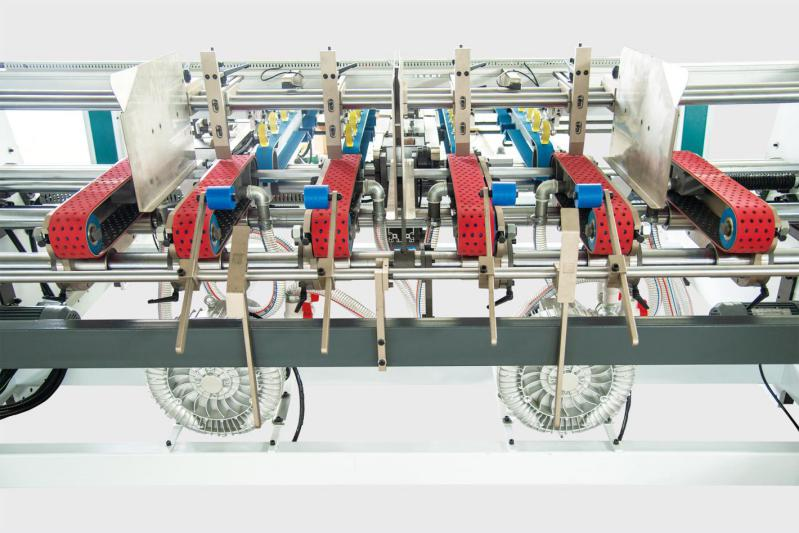

Independent dual feeding mechanism
Dual suction and feeding mechanism are independently controlled to ensure paper feeding is stable and reliable, and paper feeding with high accuracy and easy to adjust.
Sheet conveying individual control
Individual drive structure for AB sheet feeding and clutch system to avoid the scratches of board with belt in conveying.
Servo control alignment system
motion control servo positioning system to ensure highly accurate on the alignment of carton gluing, and faster for digital adjustment.
Strong cohesiveness by cold and hot double coating structure
The hot glue uses an aluminum glue box to heat quickly for instant sticking location. Cold glue uses stainless steel glue box to resist corrosion. Cold glue storage in a bucket with pressure for automatic gluing.

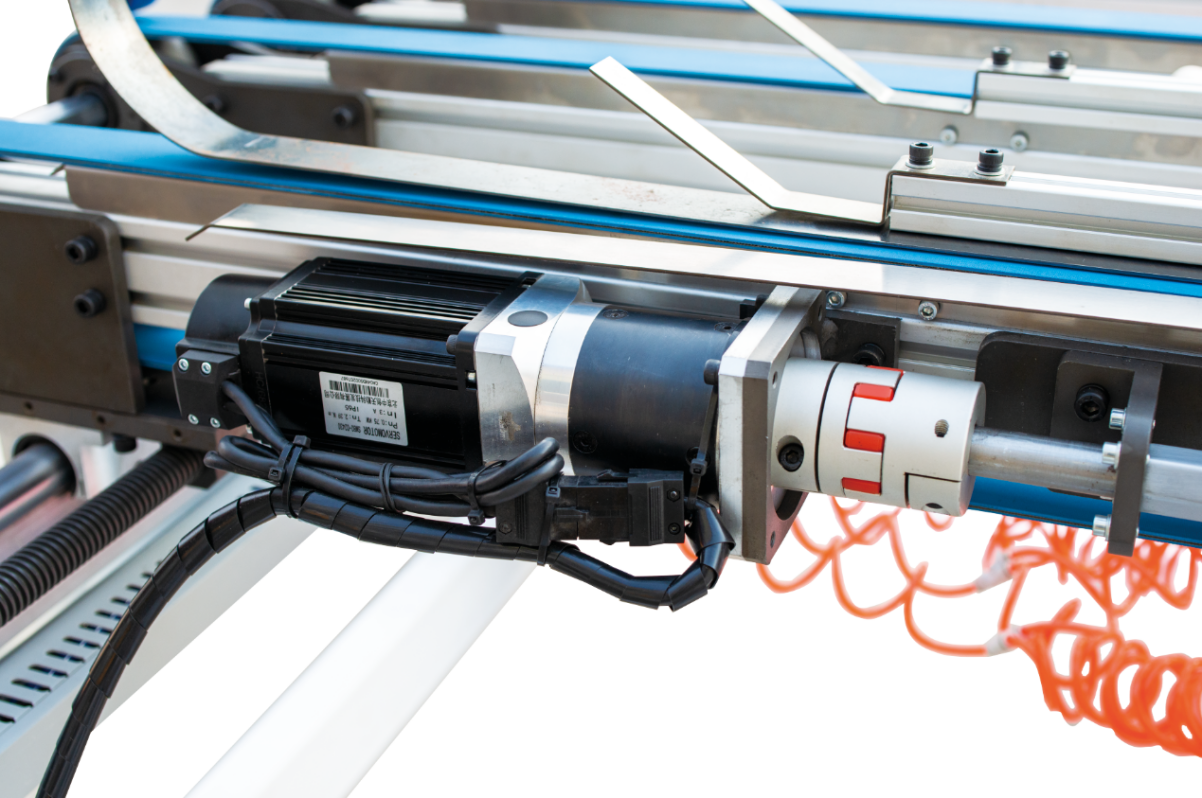

Servo motor controlled folding
Use servo motor to fold the carton, with adjustable pressure and stable folding.
Technical Specifications
| Model | FC-2300Z | FC-2600Z | FC-3000Z |
|---|---|---|---|
| Maximum sheet size (single) | 1150mm * 1150mm | 1300mm * 1150mm | 1500mm * 1200mm |
| Minimum sheet size (single) | 550mm * 350mm | 550mm * 350mm | 550mm * 350mm |
| Feeding pile height | 400mm | 400mm | 400mm |
| Registration Accuracy | ±1.0mm | ±1.0mm | ±1.0mm |
| Sheet thickness | E flute to 10mm | E flute to 10mm | E flute to 10mm |
| Power | 16KW | 16KW | 16KW |
| Gross weight | 4.6T | 5.0T | 5.4T |
| Machine size (Receiving parts exclusive) | 4950mm * 3300mm * 1800mm | 4950mm * 3800mm * 1800mm | 4950mm * 4200mm* 1800mm |
